Glaco Wiper power on imported vehicles

Glaco Power Blade Multi-Fit

This Glaco Wiper is specially designed for imported cars with high rain repellent performance. Even for imported cars with high wiper arm pressure and aerodynamic wipers that do not distribute pressure evenly, which are disadvantageous conditions for water-repellent wipers, Glaco Wiper Power Water Repellent for Imported Cars repels rain and provides clear visibility. The unique design of this wiper blade combines the features of an aero-design wiper with those of a tournament wiper, which fits on all glass surfaces and provides stable wiping performance. Pre-set adapters are available to match the shape of the tips of the arms of various imported cars, making it compatible with a wide range of car models.

Hydrophobicity

Wiping power

Aesthetics

Economy

Contents: 1

Glaco Power Blade Multi-Fit Technology

Aerodesign Tournament Wiper: This is a uniquely designed wiper blade that combines the features of an aero-design wiper with its low height and excellent design with those of a tournament-type wiper that fits all types of curved glass surfaces and provides stable wiping performance.

Developed wiper rubber exclusively for imported cars!: For imported cars, which have higher wiper arm pressure than domestic cars, we have succeeded in developing a specially designed rubber with optimized hardness of water-repellent silicone rubber, which provides smooth wiping and water-repellent effects.

Strongly repels rain just by wiping.: Simply wiping when the glass is dry powerfully repels rain and provides comfortable visibility.

Wedge-shaped cross section to prevent "lifting"!: The wedge-shaped form of the wiper provides downforce from the driving wind, and stable wiping performance is achieved by applying appropriate wiper pressure even at high speeds.

How to use Glaco Power Blade Multi-Fit

Before replacement

After opening the package, check that the wiper rubber of this product has not come off and that there are no deformed or missing parts.
Stop the engine and make sure the wiper switch is OFF.
Remove traffic film and dirt from the glass beforehand.
Please work on the glass and body with a soft cloth or similar material to prevent scratches.

Adapter "B1" type Adapter "TL-2" type Adapter "TL-2B" type Adapter "PT-3" type Adapter "TL-4" and "TL-4a" type Adapter "TL-4B" type Adapter "PH-5" type Adapter "PH-5B" type Adapter "CL" type

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

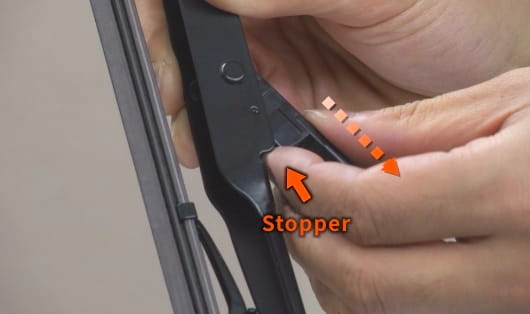

While pressing the stopper, slide the wiper blade in the direction of the arrow and remove it.
STEP 03

Attach adapter B1 to the wiper blade.

Insert the supplied adapter B1 until it clicks into place.
- R type: The tip of the adapter is on the "Glaco" mark side of the Glaco wiper L type: The base of the adapter is on the "Glaco" mark side of the Glaco wiper
- R type: The tip of the adapter is on the "Glaco" mark side of the Glaco wiper L type: The base of the adapter is on the "Glaco" mark side of the Glaco wiper
STEP 04

Install new blades and you are done.

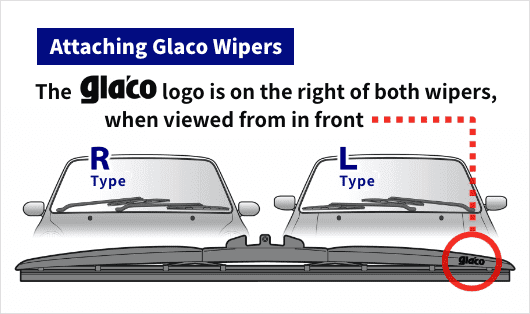

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Hook the adapter to the U-shaped hook on the wiper arm.

Rotate the wiper blades approximately 90 degrees.

Insert it in the direction of the arrow. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

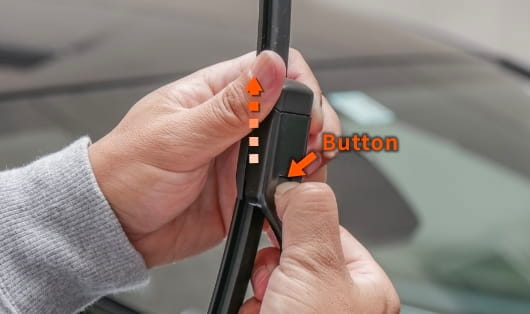

While pressing the button, pull in the direction of the arrow to remove it.
STEP 03

Attach the adapter TL-2 to the wiper arm.

Attach the supplied adapter TL-2 to the wiper arm.

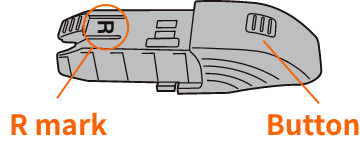

- *Check the "R" marking. If your car is an L type, remove the cap while pressing the button on the supplied TL-2 adapter and install the cap on the opposite side so that the L imprint is visible.
- *Check the "R" marking. If your car is an L type, remove the cap while pressing the button on the supplied TL-2 adapter and install the cap on the opposite side so that the L imprint is visible.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

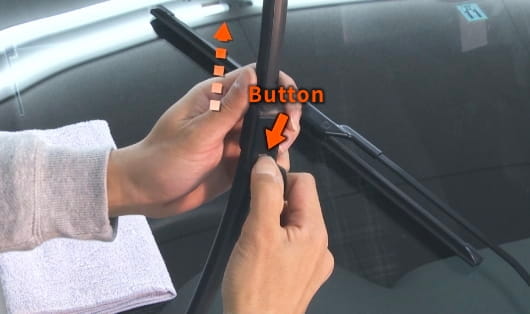

While pressing the button, pull in the direction of the arrow to remove it.
STEP 03

Attach the adapter TL-2B to the wiper arm.

Insert the supplied adapter TL-2B into the wiper arm.

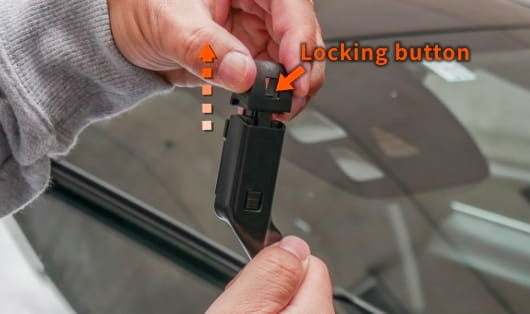

Slide the tip part in the direction of the arrow while pressing the lock button on the adapter.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached until it clicks into place.

Slide the tip part of the adapter in the direction of the arrow until it clicks into place and locks.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

Pinch the left and right stoppers and move them in the direction of the arrows to remove them.
STEP 03

Attach the PT-3 adapter to the wiper arm.

Slide the cap of the supplied PT-3 adapter to the position of the wiper arm and install it.

Slide and lock the cap.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

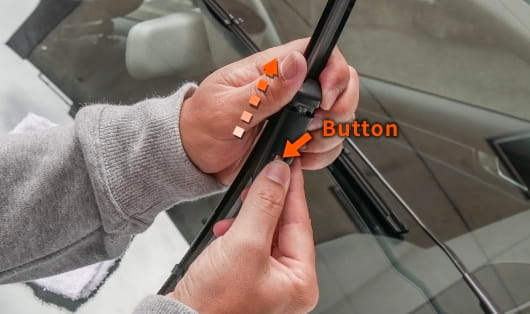

While pressing the button, pull in the direction of the arrow to remove it.
STEP 03

Attach the "TL-4" or "TL-4a" adapter to the wiper arm.

Attach the supplied "TL-4" or "TL-4a" adapter to the wiper arm.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

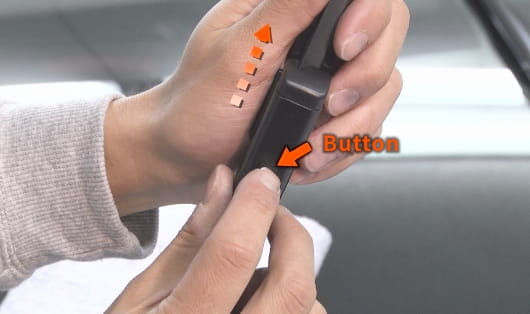

While pressing the button, pull in the direction of the arrow to remove it.
STEP 03

Attach the adapter TL-4B to the wiper arm.

Insert the supplied adapter TL-4B into the wiper arm.

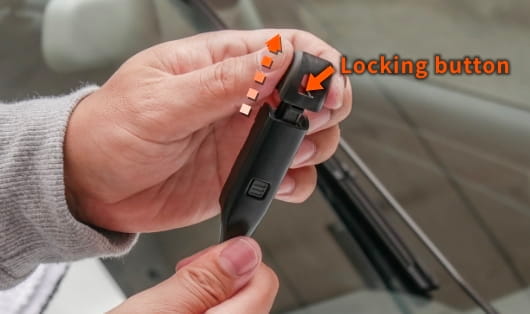

Slide the tip part in the direction of the arrow while pressing the lock button on the adapter.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached until it clicks into place.

Slide the tip part of the adapter in the direction of the arrow until it clicks into place and locks.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

Rotate the wiper blade approximately 90 degrees and pull it out. If there is a cover, push the hook on the back side of the cover and remove the cover.
STEP 03

Attach the PH-5 adapter to the wiper arm.

Hold down the arrow on the included PH-5 adapter.

Slide the cap

Attach the adapter to the wiper arm and lock the cap.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

Rotate the wiper blade approximately 90 degrees and pull it out. If there is a cover, push the hook on the back side of the cover and remove the cover.
STEP 03

Attach the PH-5B adapter to the wiper arm.

Slide the cap of the supplied PH-5B adapter in the direction of the arrow.

Attach the PH-5B adapter to the wiper arm and lock the cap.
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Insert the wiper blade into the wiper arm with the adapter attached. Be sure to check that it snaps into place.

STEP 01

Stand the arm up.

Stand up the wiper arm.
STEP 02

Remove the blade.

Remove the wiper blade cover by grasping it and pulling.
STEP 03

Attach the adapter CL to the wiper blade.

Insert the supplied adapter CL until it clicks into place.

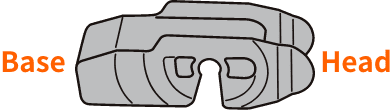

- R type: The tip of the adapter is on the "Glaco" mark side of the Glaco wiper L type: The base of the adapter is on the "Glaco" mark side of the Glaco wiper
- R type: The tip of the adapter is on the "Glaco" mark side of the Glaco wiper L type: The base of the adapter is on the "Glaco" mark side of the Glaco wiper
STEP 04

Install new blades and you are done.

For both R and L types, the "Glaco" mark should be on the right side when viewed from the hood side.

Open the adapter cover.

To match the shape of the arrow part.

Rotate the tip of the wiper arm to align it.

Snap the wiper blade into the wiper arm and close the cover until it clicks into place.
