Wiper type

Glaco Wiper power on imported vehicles

Glaco Power Blade Multi-Fit Refill

This is a replacement rubber for Glaco Power Blade Multi-Fit, a special wiper for imported cars that demonstrates high rain repellent performance. For imported cars, which have higher wiper arm pressure than domestic cars, we have succeeded in developing a specially designed rubber with optimized hardness of water-repellent silicone rubber, which provides smooth wiping and water-repellent effects.

Hydrophobicity

Wiping power

Aesthetics

Economy

Contents: 1

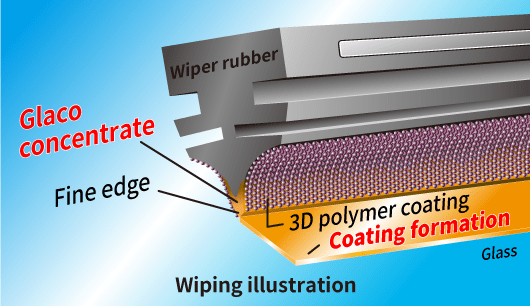

Glaco Power Blade Multi-Fit Refill Technology

Strongly repels rain just by wiping.: Forms a coating even when the glass is dry

Forms a coating film that repels rain: With only about half the wiping time of conventional types (compared to ours), which require wiping for at least 5 minutes when the glass is dry, a coating film is formed on the glass surface that repels rain, providing comfortable rain splash and good visibility on rainy days.

How to use Glaco Power Blade Multi-Fit Refill

Before replacement

Stop the engine and make sure the wiper switch is OFF.
Remove traffic film and dirt from the glass beforehand.
Please work on the glass and body with a soft cloth or similar material to prevent scratches.

Adapter "B1" type Adapter "TL-2" type Adapter "TL-2B" type Adapter "PT-3" type Adapter "TL-4" and "TL-4a" type Adapter "TL-4B" type Adapter "PH-5" type Adapter "PH-5B" type Adapter "CL" type

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Rotate the wiper blade approximately 90 degrees and pull in the direction of the arrow to remove it.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Remove the wiper blade by pulling it with a slight twist.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Slide the tip part of the adapter to unlock it.

Remove the wiper blades.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Insert the wiper blade into the wiper arm until it clicks into place.

Slide the tip part of the adapter in the direction of the arrow until it clicks into place and locks into place.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Remove it with force in the direction of the arrow.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Remove it with force in the direction of the arrow.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Slide the tip part of the adapter to unlock it.

Remove the wiper blades.
STEP 03

Pull it out with the metal rail from the side with the lock hole.

Insert new wiper rubbers.
STEP 04

Insert the old rubber from the side without the lock hole.

Insert the blade claws into the rubber.
STEP 05

Insert the claws into the locking holes.

Make sure metal rails are not displaced.

Attach the blade to the arm and you're done!
STEP 06

Attach the blade to the arm and the work is complete.

Insert the wiper blade into the wiper arm until it clicks into place.

Slide the tip part of the adapter in the direction of the arrow until it clicks into place and locks into place.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Remove the wiper blade by pulling it with a slight twist.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Remove the wiper blade by pulling it with a slight twist.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.

STEP 01

Stand the arm up.

Remove and work on the wiper blades.
STEP 02

Remove the blade.

Rotate the wiper blade to unlock the adapter.
Open the cover of the adapter and remove it from the wiper arm.
STEP 03

Pull out the old wiper rubber.

Pull it out with the metal rail from the side with the lock hole.
STEP 04

Insert new wiper rubbers.

Insert the old rubber from the side without the lock hole.
STEP 05

Insert the blade claws into the rubber.

Insert the claws into the locking holes.

Make sure metal rails are not displaced.
STEP 06

Attach the blade to the arm and you're done!

Attach the blade to the arm and the work is complete.
